Descripción técnica
Cuadro
Cuadro:

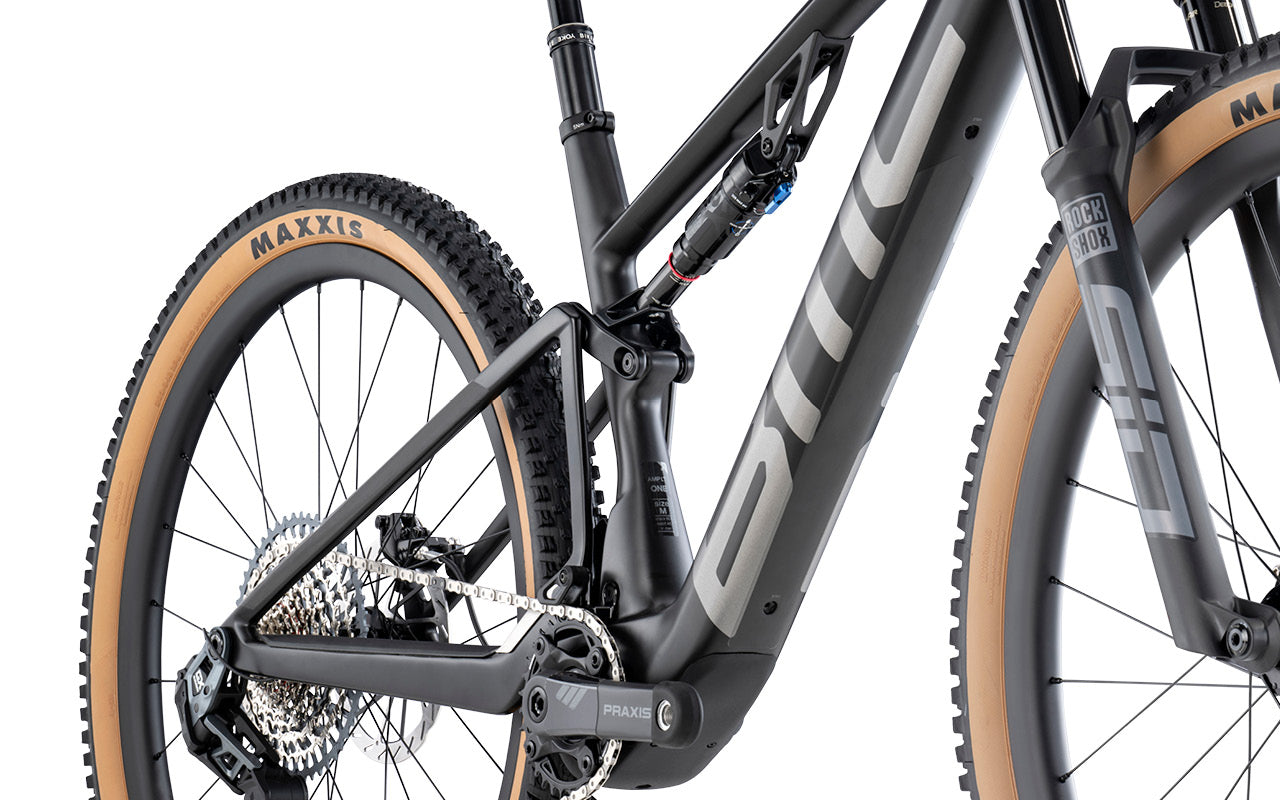

Fourstroke LT AMP Carbon | APS Suspension System | 120mm Travel | Integrated Battery | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Horquilla:
RockShox SID Select+ 3P | 120mm Travel
Suspensión
Suspensión Delantera:
RockShox SID Select+ 3P | 120mm Travel
Suspensión Trasera:
RockShox SIDLUXE Select+ 3P | 120mm Travel
Bloqueo Remoto:
E-System
Motor:
TQ-HPR60 Drive Unit
Batería:
TQ Battery | 360 Wh | Certified by UL LLC
Display:
TQ Graphic color Display | 2" O-LED | Bluetooth / ANT+
Unidad de Control:
TQ Remote
Cargador:
TQ 4A Charger
Cockpit
Potencia:
Truvativ Atmos 7K
Manillar:
BMC MRB 01 Riser Bar Carbon | 760mm
Seat
Tija de Sillín:
Bikeyoke Divine
Sillín:
Fizik Antares R7
Transmisión
Platos y Bielas:
Praxis Carbon eCrank | SRAM X Sync
Platos:
32T
Cassette:
SRAM XS-1275 Eagle Transmission (CS-XS-1275-A1)
Tamaño del cassette:
10-52T
Cadena:
SRAM GX Eagle Transmission Flattop
Cambio Trasero:
SRAM GX Eagle Transmission
Manetas de Cambio:
SRAM AXS Pod Controller
Marchas:
1 x 12
Frenos
Pinzas de Freno:
SRAM Motive Silver (DB-MOTV-SLV-A1)
Discos:
SRAM HS2 | 6-Bolt
Tamaño del disco:
180 / 180mm
Ruedas
Llantas:
XCC 30 | Tubeless Ready | 30mm Internal Width
Bujes:
XCC 30
Neumáticos:
Maxxis Rekon 2.4" WT | EXO TR
Información Tubeless:
Tubeless Ready Rims | Tubetype Tires
Información adicional
Paso de rueda:
60mm measured tire
Peso sin pedales:
16.3kg | Size M as pictured with all accessories
Clasificación ASTM:
Level 3
Límite de peso del sistema:
110kg
Reglamento relativo a la seguridad general de los productos (GPSR):
Instrucciones de seguridad GPSR (UE)
Persona responsable según el GPSR (UE)
Geometría
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 437 | 457 | 476 | 496 |
| Stack | 594 | 605 | 615 | 627 |
| Bar Rise | 20 | 20 | 20 | 20 |
| Bar Sweep | 7.5° | 7.5° | 7.5° | 7.5° |
| Bar Width | 760 | 760 | 760 | 760 |
| BB Drop | 40 | 40 | 40 | 40 |
| Crank Length | 165 | 170 | 170 | 170 |
| Fork Length | 531 | 531 | 531 | 531 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center | 725 | 751 | 775 | 800 |
| Head Tube | 90 | 102 | 113 | 125 |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Rear Center | 435 | 435 | 435 | 435 |
| Seat Angle | 77° | 77° | 77° | 77° |
| Seat Tube | 420 | 430 | 470 | 490 |
| Seatpost Drop | 125 | 160 | 185 | 185 |
| Seatpost Length | 365 | 435 | 485 | 485 |
| Seatpost Offset | 0 | 0 | 0 | 0 |
| Standover Height | 730 | 730 | 730 | 730 |
| Stem Angle | ±6° | ±6° | ±6° | ±6° |
| Stem Length | 40 | 50 | 50 | 60 |
| Top Tube | 574 | 597 | 620 | 644 |
| Trail | 115 | 115 | 115 | 115 |
| Wheelbase | 1157 | 1178 | 1202 | 1227 |
