Name: Kaius 01 FOUR
Brand: BMC
SKU: 30007062
Price: 5999.0 USD
Availability: OutOfStock

Black / Neon Red

Designed for speed and built for tough terrain. Comes with ICS cable integration and CG 40 carbon wheels and the newest SRAM Rival AXS XPLR.

USD 5,999.00

SKU: 30007062

Size —

Compatible Parts & Accessories

Check for availability within our Retailer Network

[{"id":54912825164162,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30007062","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Kaius 01 FOUR - 47","public_title":"47","options":["47"],"price":599900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523544","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912825196930,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30007063","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Kaius 01 FOUR - 51","public_title":"51","options":["51"],"price":599900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523537","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912825229698,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30007064","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Kaius 01 FOUR - 54","public_title":"54","options":["54"],"price":599900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523520","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912825262466,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30007065","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Kaius 01 FOUR - 56","public_title":"56","options":["56"],"price":599900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523513","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912825295234,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30007066","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Kaius 01 FOUR - 58","public_title":"58","options":["58"],"price":599900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523506","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912825328002,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30007067","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Kaius 01 FOUR - 61","public_title":"61","options":["61"],"price":599900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523490","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Gravel Racing, Redefined. The Kaius 01 is the result of BMC’s obsession with gravel speed. Engineered in the Impec Lab with cutting-edge carbon technology, it’s purpose-built for competitive gravel racing. Its race-optimized geometry delivers the ideal mix of stiffness, low weight, and compliance - enhancing traction, stability, and climbing efficiency across demanding terrain. With the RSM01 stem featuring ICS cable integration and our new aluminum HB-D4-03 handlebar, our Aerocore design, this bike cuts through the wind and charges ahead. Equipped with top-tier components like the newest SRAM Rival AXS XPLR, and CG 40 carbon wheels, the Kaius 01 is ready to chase podiums and push boundaries on every ride.

Technology

Speed Unbound

The innovative premium carbon layup uses ultra high-module fibres for unmatched stiffness resulting in maximum power transfer and minimal weight. Kaius boasts our Tuned Compliance Concept Race Technology for a comfortable ride on rough surfaces.

Race-ready Gravel Geometry

Kaius was built with one purpose: to be fast on gravel roads. That is why we produced a gravel-specific frame with a longer reach shifting the front wheel forward to improve stability and increase traction on loose surfaces.

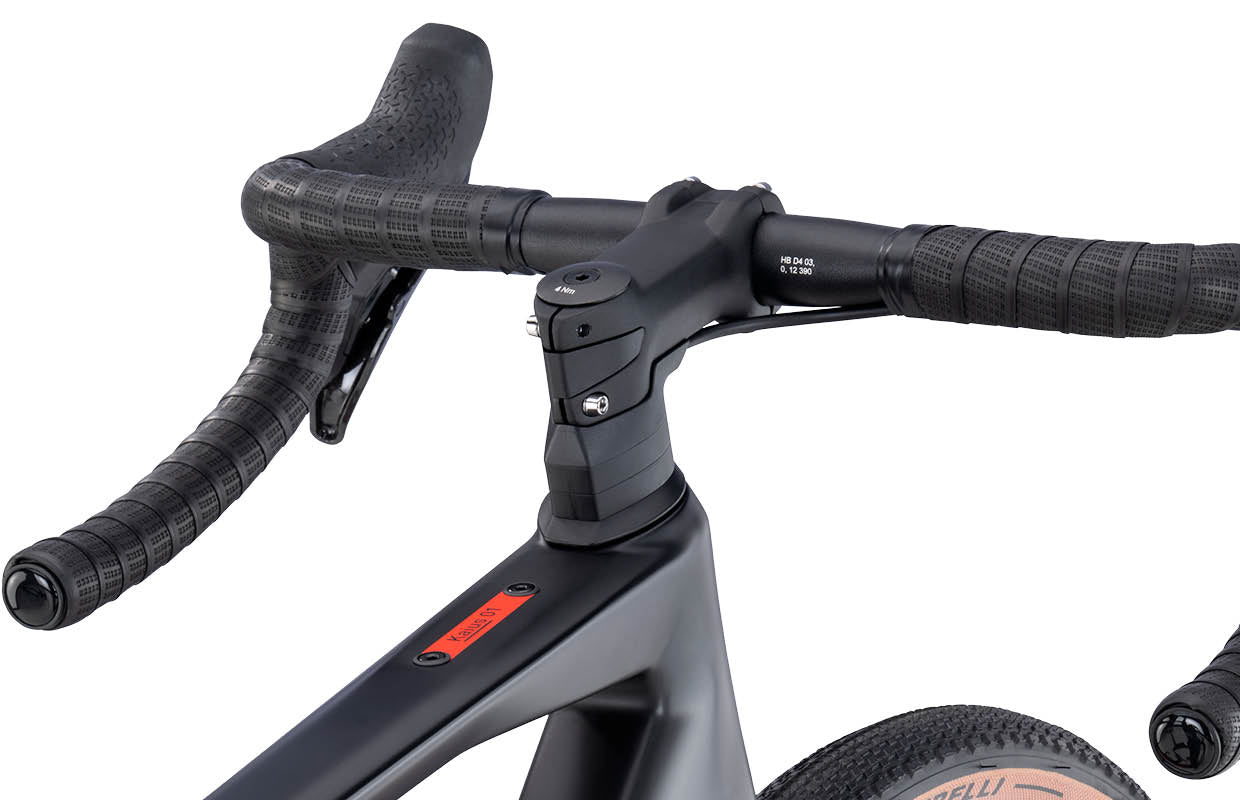

Integrated Cockpit System (ICS)

The aesthetic simplicity and innovative functionality of the Integrated Cockpit is the epitome of Swiss engineering and design. ICS keeps shifter wires and brake lines in their place: out of sight.

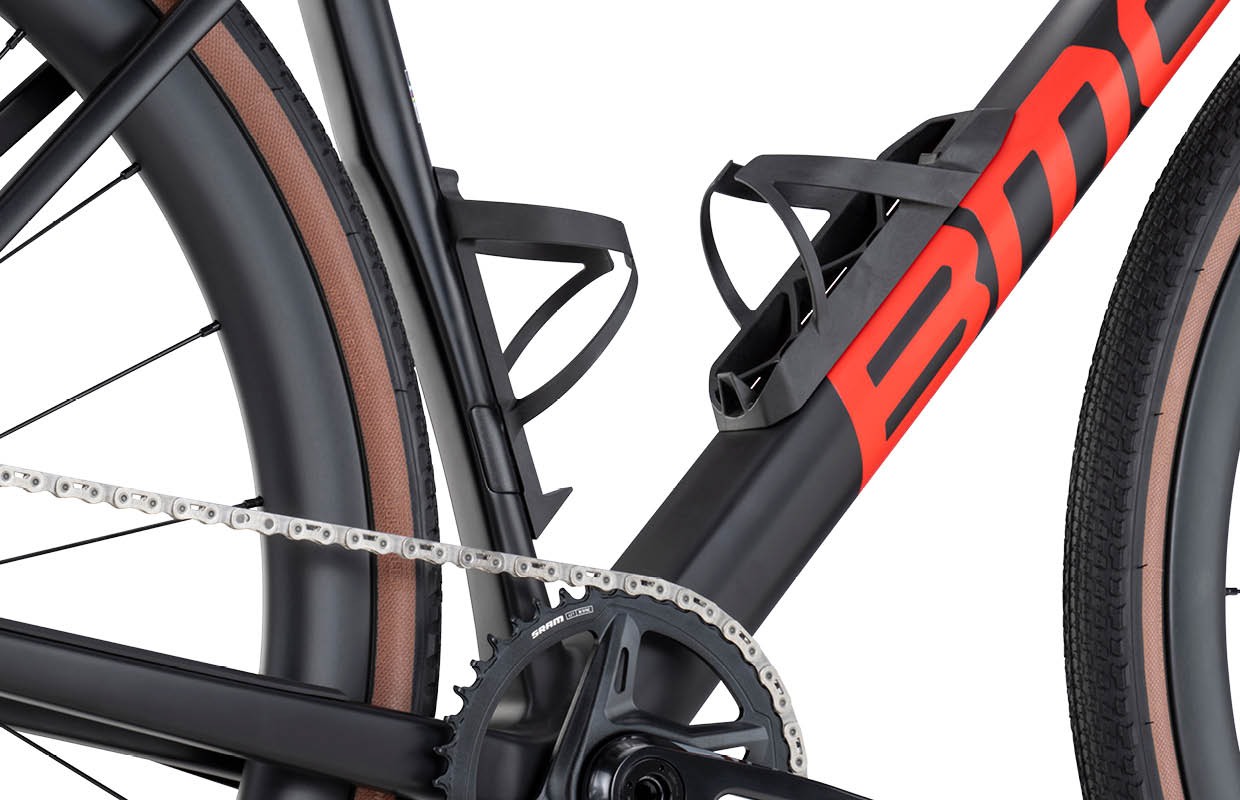

Aerocore Design

Kaius comes in at the highest level of functional integration with our Aerocore design. This evolved solution integrates the bottle cages into the frame to optimize aerodynamic performance.

Technical Overview

Frameset

Cockpit

Stem:
BMC RSM 01 | Integrated Cockpit System Technology

Handlebar:
BMC HB D4 03, 0, 12 | Alloy 6061 | 125mm drop, 70mm reach, 12° flare

Seat

Seatpost:
Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Vento Argo X5 | 140mm

Drivetrain

Crankset:
SRAM Rival AXS Wide (FC-RIV-1W-E1)

Chainrings:
42T

Cassette:
SRAM Rival XPLR (CS-XG-1351-E1)

Cassette Size:
10-46T

Chain:
SRAM Rival (CN-RIV-E1)

Rear Derailleur:
SRAM Rival XPLR AXS (RD-RIV-1E-E1)

Shifters:
SRAM Rival AXS (ED-RIV-E1)

Gears:
1 x 13

Bottom Bracket:
SRAM Press Fit DUB

Brakes

Brake Levers / Calipers:
SRAM Rival AXS (ED-RIV-E1)

Rotors:
SRAM Paceline | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CG 40 Carbon | Tubeless Ready | 40mm

Hubs (F/R):
CG 40

Tires:
Pirelli Cinturato Gravel H | 40mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories

In the Box:
Aerocore Design Carbon Bottle Cages

Additional Information

Tire Clearance:
44mm

Weight without Pedals:
8.5kg | Size 54 with all accessories

ASTM Classification:
Level 2

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	390	397	401	405	410	414
Stack	510	530	550	570	595	620
Bar Drop	125	125	125	125	125	125
Bar Reach	70	70	70	70	70	70
Bar Width	390/448	390/448	390/448	410/468	410/468	430/488
BB Drop	80	80	80	80	80	80
Crank Length	170	170	172.5	172.5	175	175
Fork Length	387	387	387	387	387	387
Fork Rake	50	50	45	45	45	45
Front Center	596	610	608	619	632	644
Head Tube	85	106	123	144	170	196
Head Tube Angle	71	71	72	72	72	72
Rear Center	420	420	420	420	420	420
Seat Angle	73	73	73	73	73	73
Seat Tube	428	452	468	493	513	533
Seatpost Length	280	320	360	360	400	400
Seatpost Offset	15	15	15	15	15	15
Standover Height	684	722	756	780	798	818
Stem Angle	-8	-8	-8	-8	-8	-8
Stem Length	80	90	90	100	100	110
Top Tube	546	559	569	579	592	604
Trail	68	68	68	68	68	68
Wheelbase	1003	1017	1015	1026	1039	1051
